Trent ReNEW is a partnership project between the Environment Agency, Staffordshire Wildlife Trust and Support Staffordshire. The project will focus on two catchments within the Staffordshire Trent Valley landscape: The River Sow through Stafford and the Trent headwaters through Stoke-on-Trent. These rivers have been engineered to provide flood protection and other services. We are helping offset the necessary modifications by maximising the benefit of the stetches which can better resemble a natural water course.
The project aims to improve the biodiversity these two watercourses, through:
– Improving the dynamics of the water in the channel. We will change the structure of the river channel to include more natural features. The nature features will be chosen on a site-by-site bases to work with the shape of the channel and floodplain. Adding features, like riffles, will speed up water flows and add oxygen into the water, which is great for wildlife. Widening the channel, slows the flow which will improve how sediment is moved and deposited creating better quality habitats for wildlife.
– Reconnect the river to its floodplain. This will create a larger wetland area that is less likely to dry out during drought. Floodplains are key for the resilience of a watercourse providing natural services as well as important habitat.
– Create different habitats. In the river and across its floodplain we will create lots of different habitats which will support lots of different types of wildlife. By supporting wildlife at the bottom of the food chain we can restore the ecosystem upwards, and improve habitat for insects, fish, and birds.
– Protecting the river against pollution. Creating different wetlands, ponds and opportunities for species diversity in draining valley will help to filter pollution coming off the land before it enters the water.
All of the interventions being planned restore the river, to increase the natural processes and benefits that a healthy river has. Nothing we are proposing will increase the risk of flooding to the local residences. Some of the actions may slightly lower the risk as we aim to hold the water in the floodplain where it belongs. All proposed changes are hydrologically modelled and subject to permits that consider the risk to infrastructure, people and the environment during and after completion.

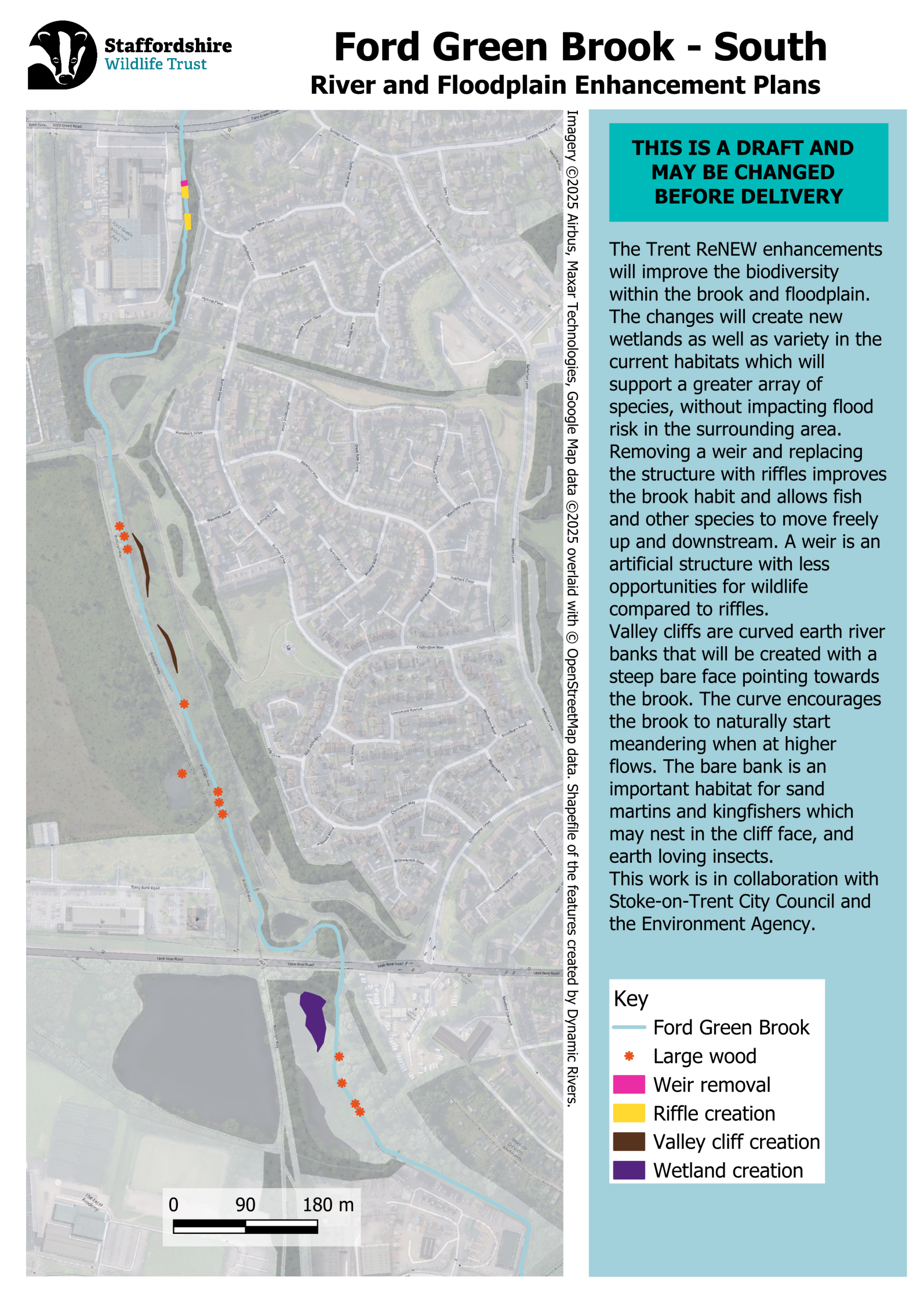

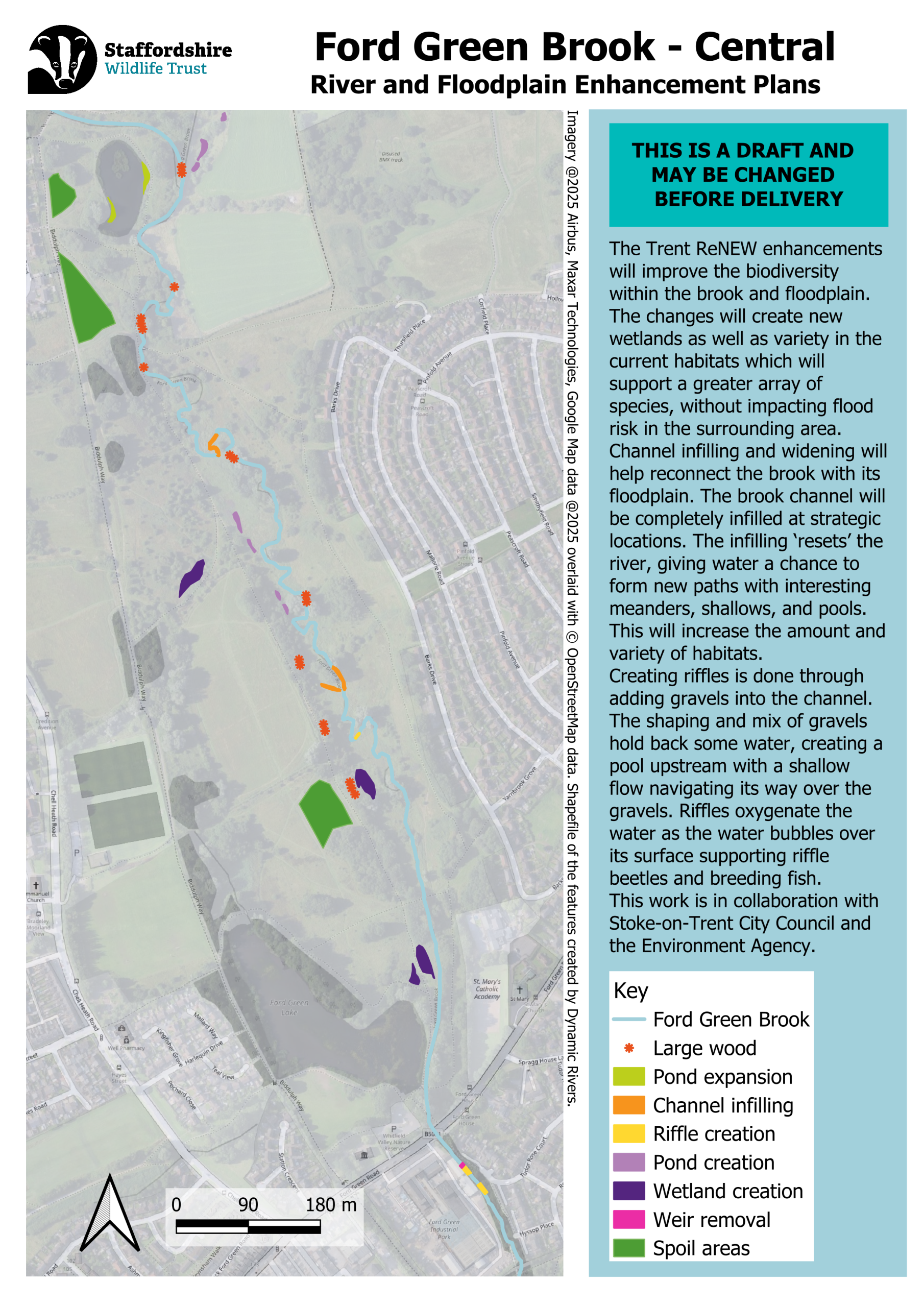

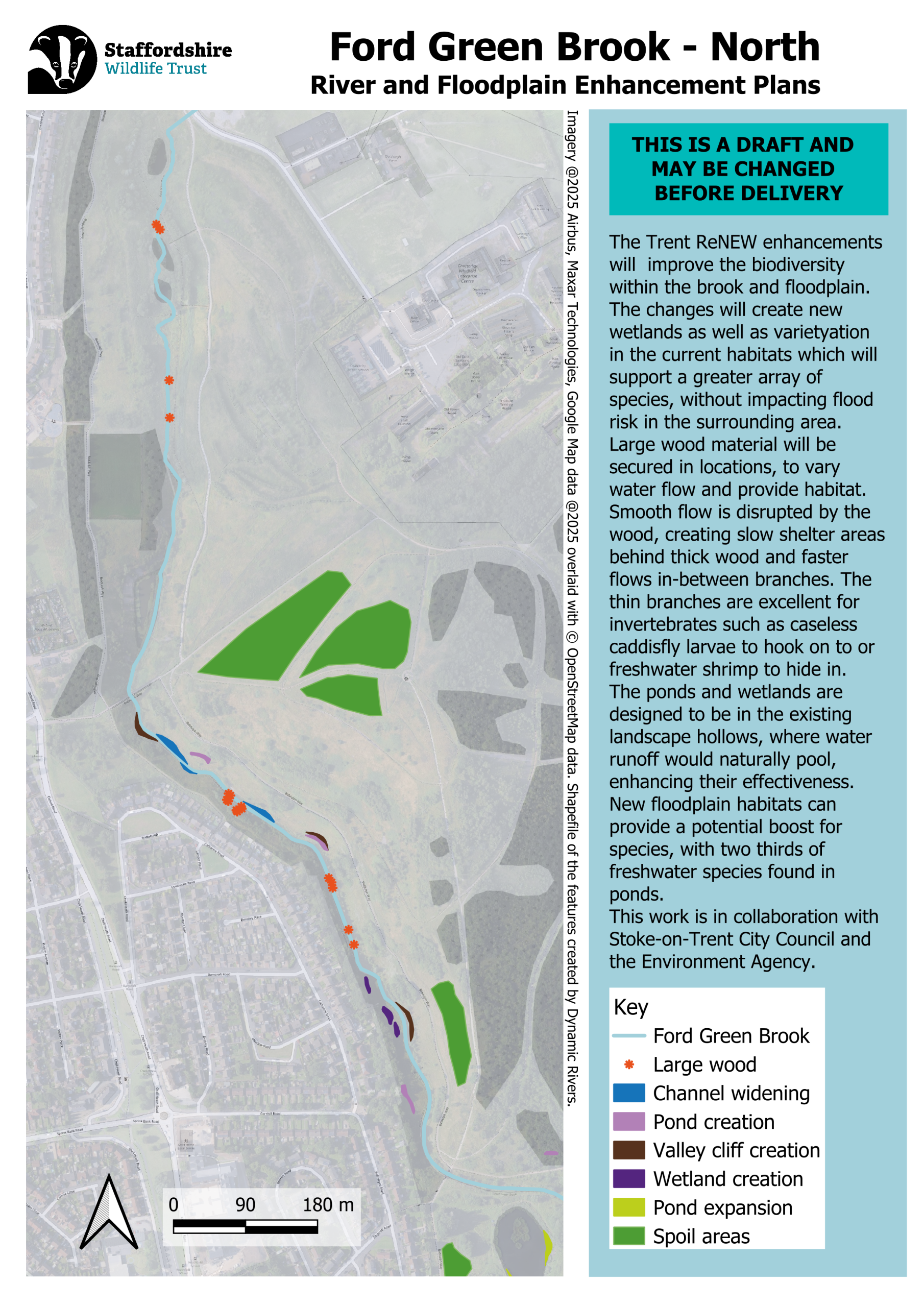

Ford Green Brook is a tributary of the River Trent. The area has a long history with coal mining, with local collieries such as the Chatterley Whitfield Colliery supplying coal to the Ford Green ironworks. There is a long stretch of the brook in this area with lots of opportunities to enhance the floodplain and channel.
The current proposals include creating wetlands in the floodplain, adding riffles and large wood into the brook along with widening and infilling the channel. This variety of features encourage a greater variety of wildlife.

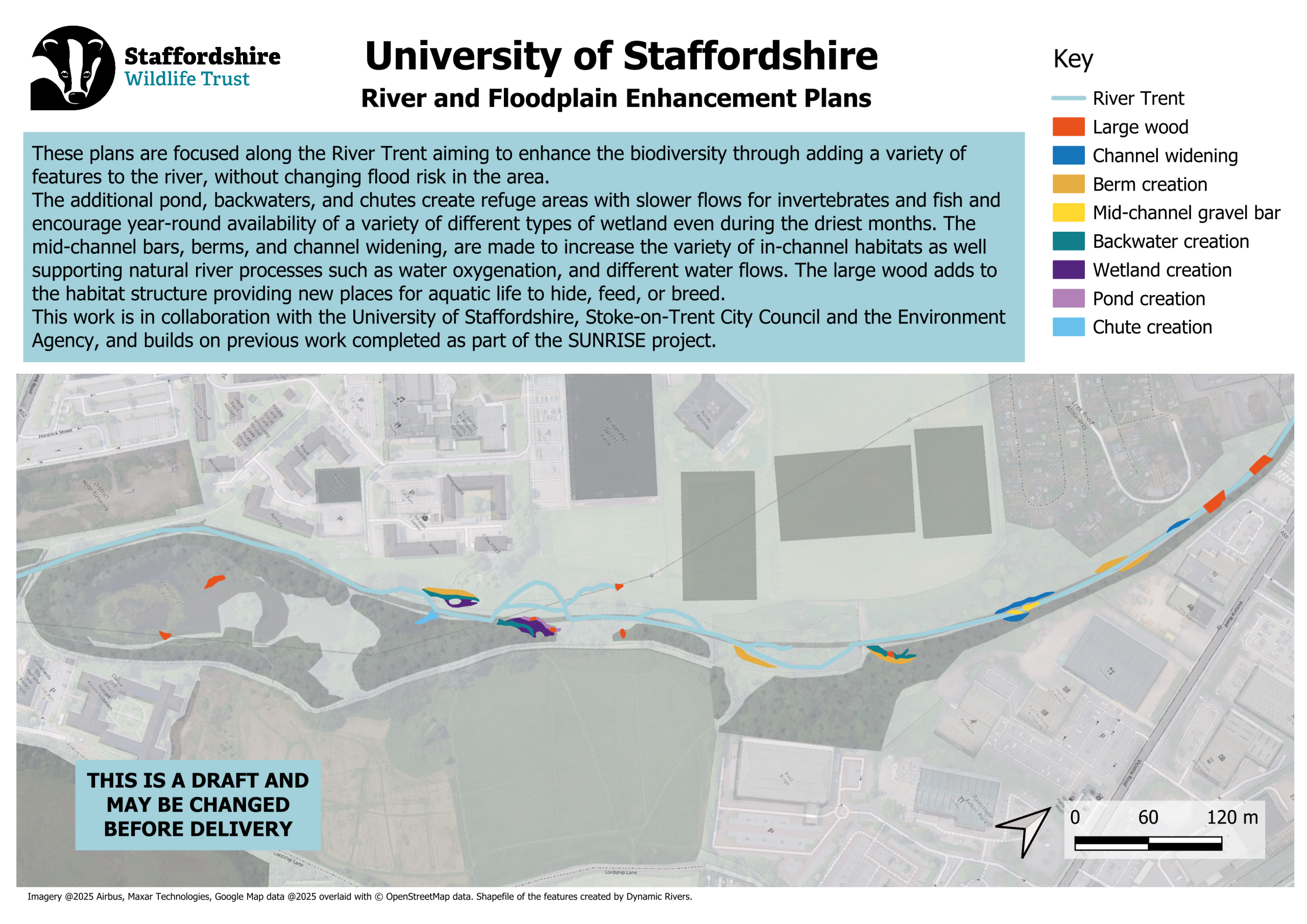

Adding further in-channel enhancements to the work done on the site through the SUNRISE Project in 2020 to re-naturalise the river. This stretch of the River Trent was originally a single, modified, straightened channel largely cut off from its narrow floodplain but now it has multiple paths with dynamic flows and it is reconnected with its floodplain. The new proposals build on the previous interventions and include the creation of further backwaters, chutes, riffles, and the addition of large woody material into the floodplain. These will further add to the variety of habitat niches available to aquatic wildlife.
We have a set of proposed designs that are currently being investigated for their feasibility for deliver before being submitted for permitting.

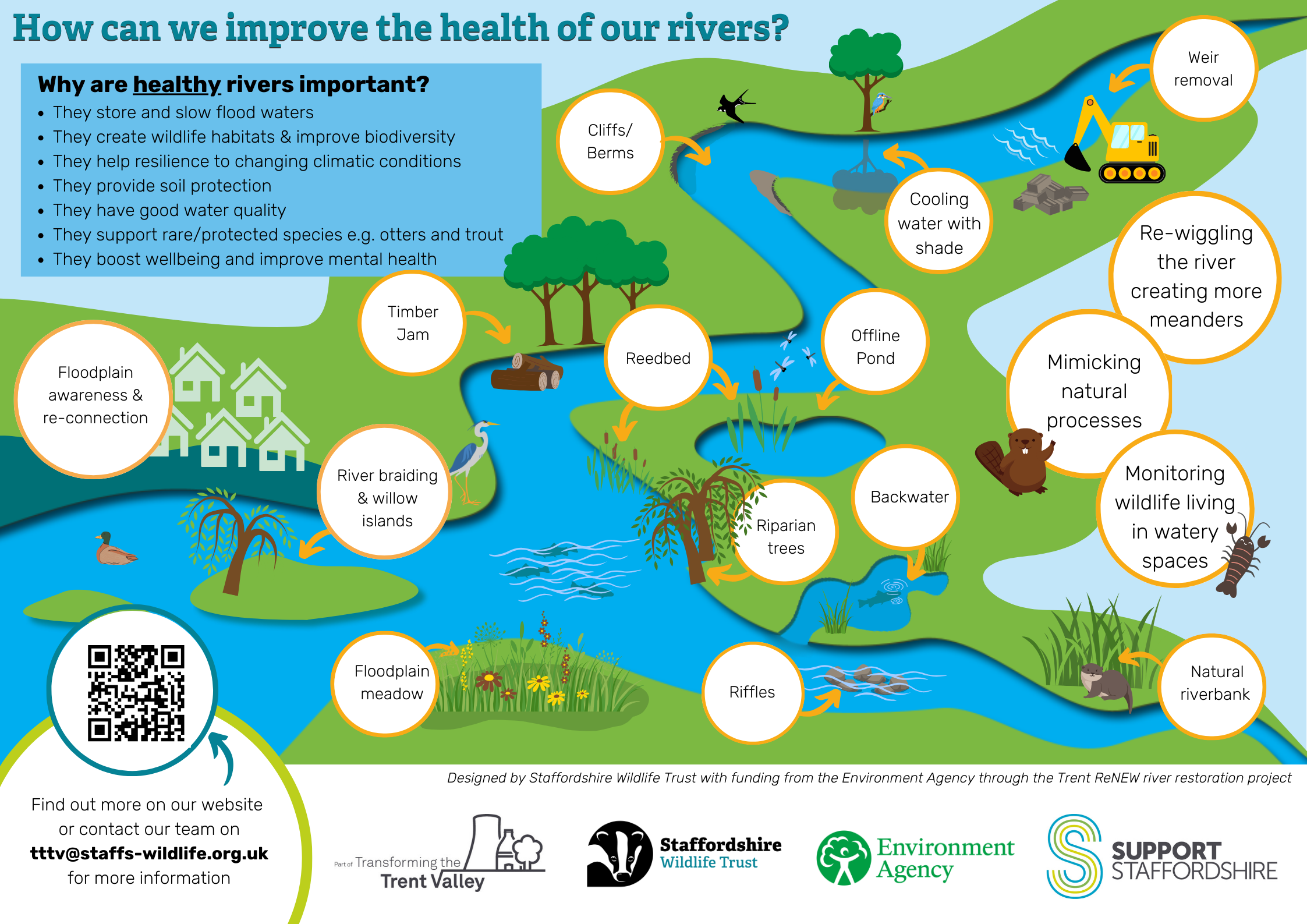

Timber jams are when woody material has fallen and become lodged across a river channel. These can be found anywhere along a river channel and can be man-made or naturally created out of a mix of woody material. The amount of material in the jam and locations can change with changing flows of water.
Riffles are where rocks and pebbles on a shallow river bed create turbulence in the water. This feature looks like a bumpy water surface, sometimes with stones breaking the water surface. The feature changes with the flow of the water needing a swift current but relatively shallow depth.
Weirs are man-made structures used to control the flow of water by creating an overtopping dam. Removing a weir is taking out the artificial structure and returning the channel to a more natural flow dynamic. This action must be assessed on a case-by-case basis but can permanently improve a channel for nature.
Chutes are areas that direct a portion of the main river flow into the floodplain. They are created by lowering the bank and ground level – the gradient going from the river summer levels to surrounding ground level. This improves the function of the floodplain.
The process of changing the river route to add in natural meanders. The scale of this action can depend on available land and land features. Rivers have been historically straightened for a variety of reasons, changing their dynamics and reducing the amount of wetland habitats.
Backwaters are parts of the river with little or no current. These can be a branch off from the main river channel or areas behind large obstructions in the channel. Natural backwaters in the floodplain can be created as the river changes path and the old channel stays connected but is now still.
Reedbeds are transitional habitats dominated almost exclusively by common reed. They can be found in floodplains and at the edges of open water. Within a reedbed there can be a lot of microhabitats as the reeds transition from standing in water to damp and seasonally flooded areas.
Floodplain meadows are grasslands found on floodplains with grasses and wildflowers that are adapted to wetter occasionally flooded ground. They are a historical habitat type that is traditionally managed with cattle, which have disappeared in areas due to nutrient pollution and land use change.
Berms, in the context of rivers, are a raised area along the bank formed by deposition. They are generally found on the inside of a bend where the river slows and can be made of different materials. These are dynamic mobile features shaped by the flow of water and can progress into stable benches or erode down to a bar.
Floodplain awareness is engaging with the public about river processes and floodplains to increase knowledge, understanding of changes and manage expectations. Engagement can cover a range of activities from meeting with local residents, posting on social media to creating and sharing educational resources.
Willow trees that are found within the river channel with roots into the river bed. These can be seen in areas where willows are established along the riverbanks and generally on shallow riverbed areas. The islands change as the willow grows.
